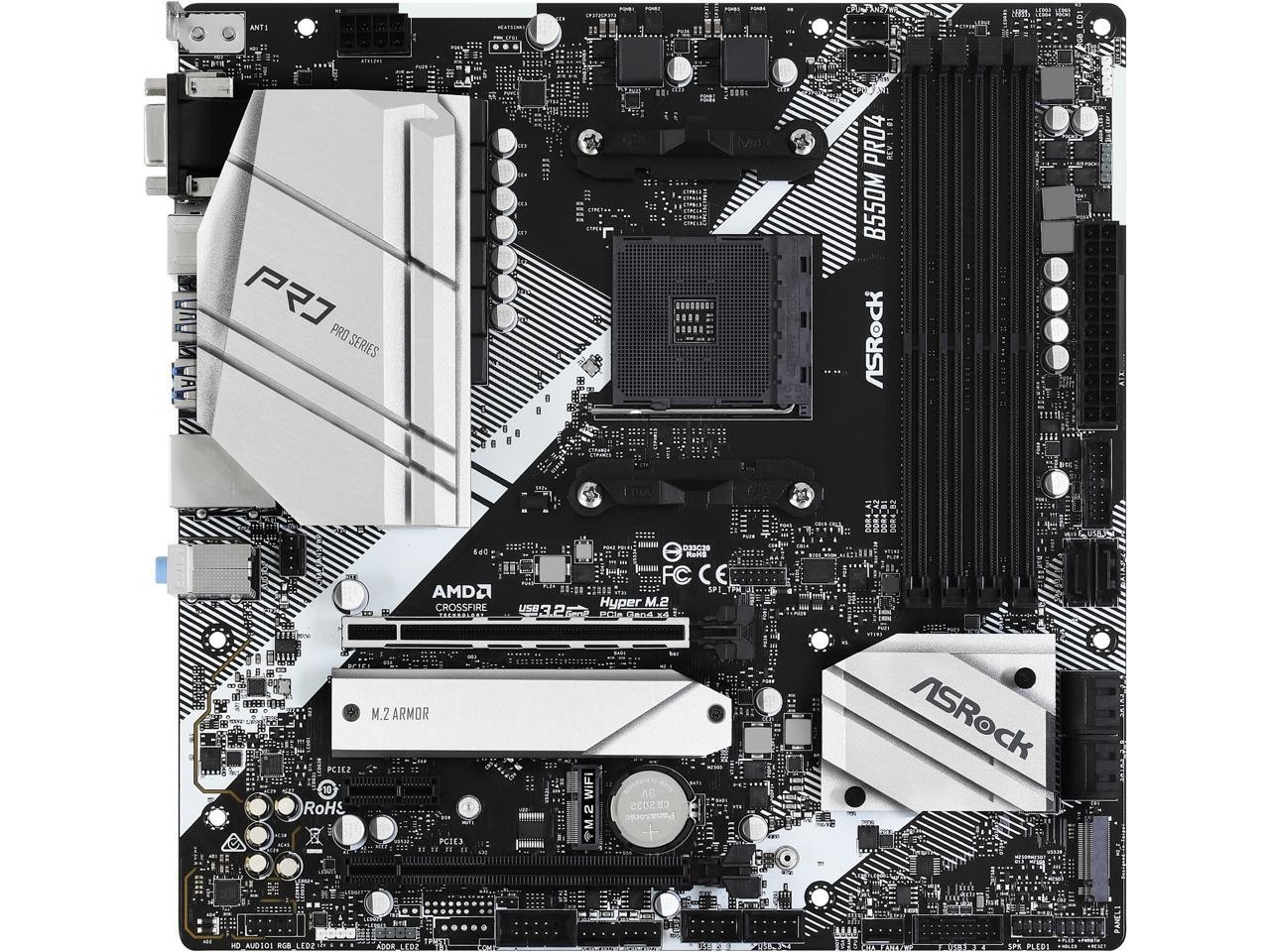

ASRock B550M PRO4 AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
ASRock B550M PRO4 AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard:
$81.99
Learn more about ASRock B550M PRO4ModelBrandASRockModelB550M PRO4Supported CPUCPU Socket TypeAM4CPU TypeSupports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series Processors** Not compatible with AMD Athlon Processors.* BIOS update might require for AMD Zen 3 Ryzen 5000 Series CPU. Refer to ASRock website for CPU support list.ChipsetsChipsetAMD B550MemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Cezanne & Renoir))*DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer & Matisse))*DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series APUs (Picasso))** For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.Maximum Memory Supported128GBChannel SupportedDual ChannelECC SupportedECC supported varies by processorsBuffer SupportedUn-bufferedExpansion SlotsPCI Express 4.0 x161 x PCI Express 4.0 x16** Supports NVMe SSD as boot disks.* Actual support may vary by CPU.PCI Express 3.0 x161 x PCI Express 3.0 x16** Supports NVMe SSD as boot disks.PCI Express x11 x PCI Express 3.0 x1Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT moduleStorage DevicesSATA 6Gb/s6 x SATA3 6.0Gb/s** M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit.SATA RAID0/1/10Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphicOnboard AudioAudio ChipsetRealtek ALC1200Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek RTL8111HMax LAN Speed1GbpsRear Panel PortsBack I/O PortsAntenna Bracket1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)2 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)Other Connectors1 x COM Port Header1 x SPI TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers*2 x Addressable LED Headers**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****1 x Front Panel Audio Connector* Support in total up to 12V/3A, 36W LED Strip.** Support in total up to 5V/3A, 15W LED Strip.*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.**** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.**** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.Physical SpecForm FactorMicro ATXLED LightingRGBDimensions (W x L)9.6" x 9.6"Power Pin1 x 24-pin ATX Power Connector1 x 8-pin 12V Power ConnectorWindows 11 CompatibilityWindows 11SupportedFeaturesFeaturesUnique Feature:ASRock USB 3.2 Gen2- ASRock USB 3.2 Gen2 Type-A Port (10Gb/s)- ASRock USB 3.2 Gen2 Type-C Port (10Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB- 2oz Copper PCBASRock Steel Slot Gen4ASRock Full Coverage M.2 HeatsinkASRock Hyper M.2 (PCIe Gen4x4)ASRock POST Status Checker (PSC)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS:- 256MB AMI UEFI Legal BIOS with GUI support- Supports "Plug and Play"- ACPI 5.1 compliance wake up events- Supports jumperfree- SMBIOS 2.3 support- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustmentSoftware and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LANUEFI- ASRock Full HD UEFI- ASRock Instant Flash* These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarHardware Monitor:- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDPOS:- Microsoft Windows 10 64-bit / 11 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)PackagingPackage ContentsAccessories:Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables2 x Screws for M.2 SocketsShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
