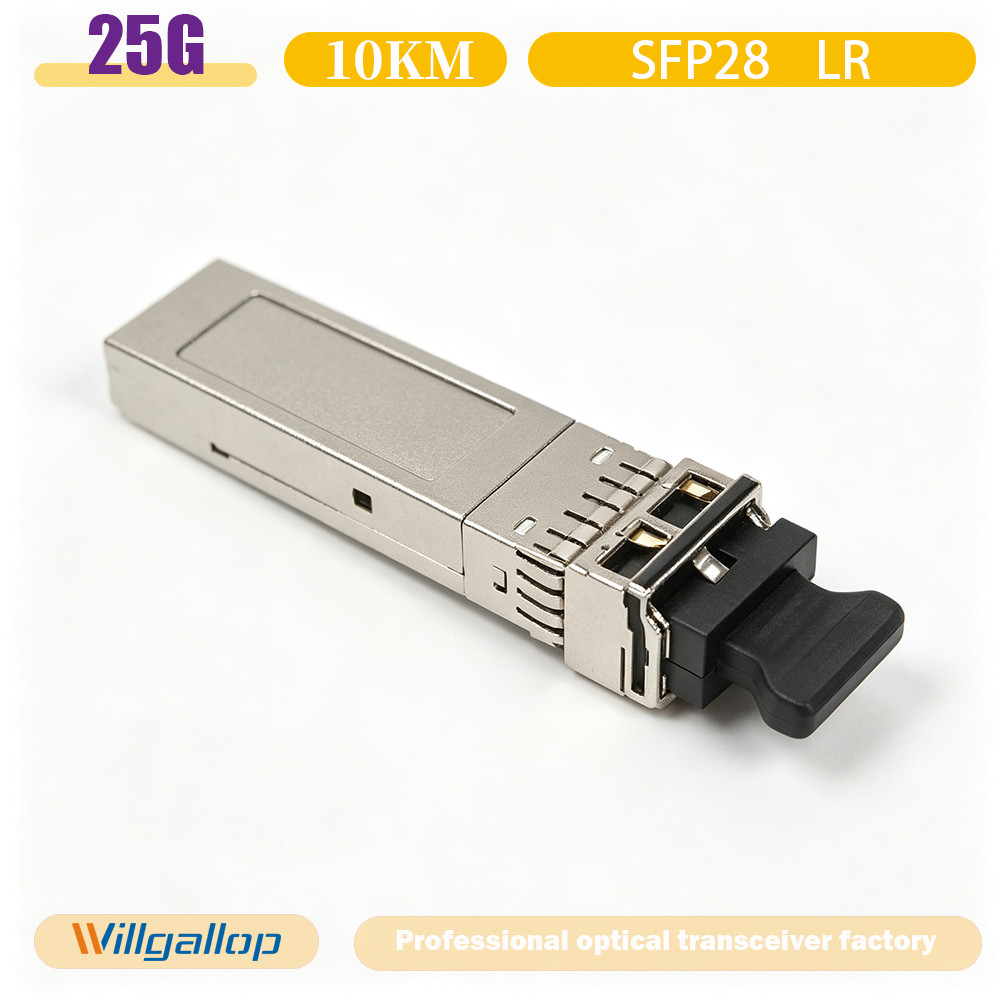

25Gbps LR SFP28 Optical Transceiver 1310nm 10km Duplex‑LC Single‑Mode SMF Module
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

25Gbps LR SFP28 Optical Transceiver 1310nm 10km Duplex‑LC Single‑Mode SMF Module:
$70.58


Single-mode SFP28 25G LR 10km Dual-LC 1310nm Optical Transceiver


The Transceiver is intended for 10km reach service 25.78Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.
The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.


Features


Operating data rate up to 25.78Gbps Up to 10km transmission distance
High sensitivity Pin photodiode and TIA Rate Adaptation LC duplex connector Hot pluggable 20pin connector Low power consumption <1.2 W Single +3.3V±5% power supply Fully RoHS Compliant Operating temperature range: Commercial: 0°C to +70°C


Application


Data Center Backbone Ethernet Switches High-speed Servers High-performance Computing Clusters SAN, Routers, Hubs, Load Balancer


Compliance


SFP28 MSA SFF-8431/8432 SFF-8472


Mechanical Dimension



Special reminder
Our production process is continuously improved, so there may be slight differences in appearance and color among products produced in different batches. These differences do not affect the functionality of the product or your experience in using it. Thank you very much for your understanding.
