Atari PSU Power Supply Power Supply ATARI ST PSU ATARI 520ST 260ST High Power:
$61.07

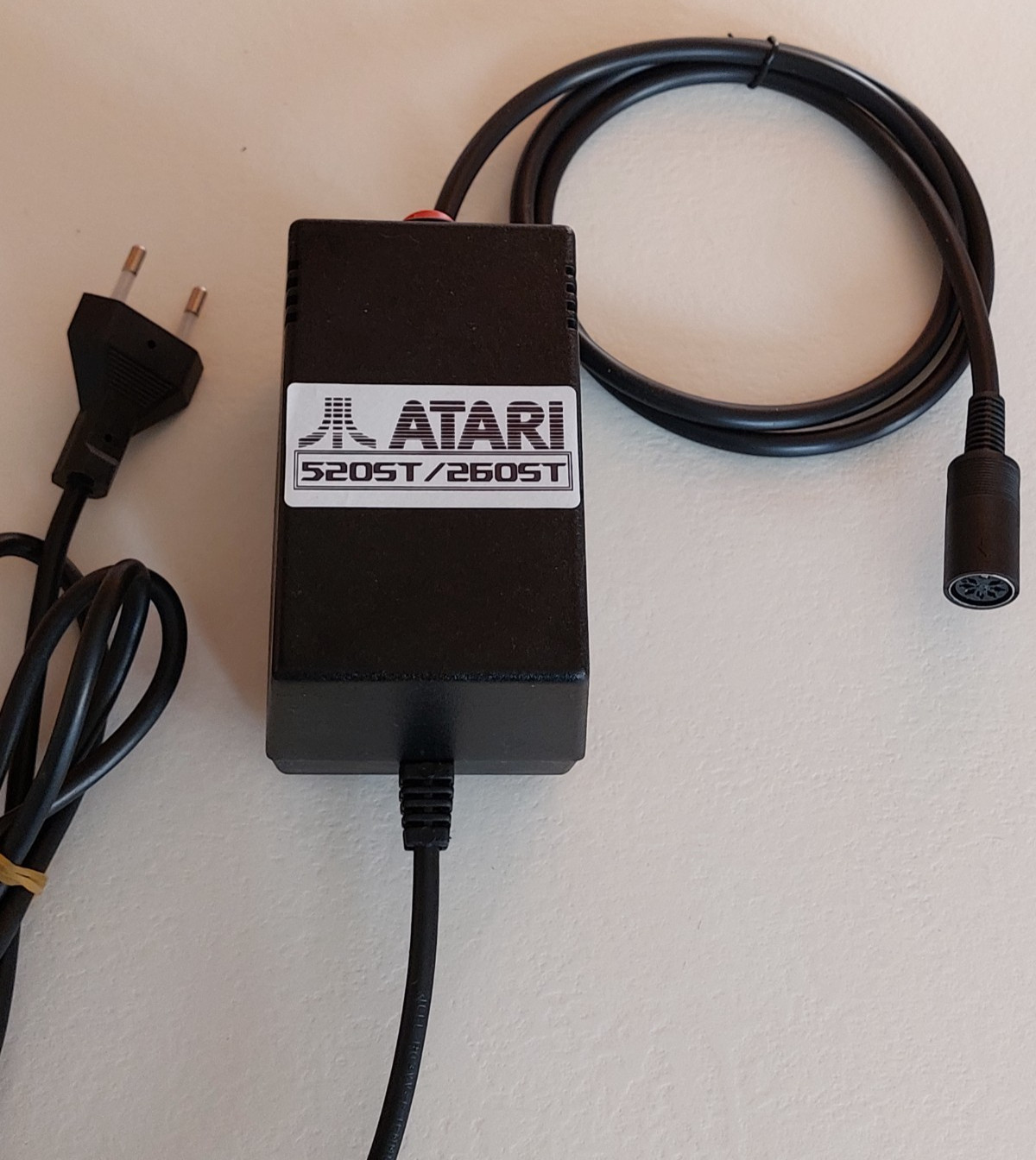

NEW & POWERFUL PSU for ATARI 520ST & 260ST

TOTAL MAX POWER -->58W!



Based on the last AC/DC switching high performance module!I made this new scalable PSU PCB in order to realize compact/sturdy and powerful PSU for ATARI 520ST & 260ST..and many other PSU for other retrogame platform..at a great price for everyone!
CHECK ALSO FOR MY OTHER PSU VERSION!! (Commodore/Atari/Sinclair!)

TECHNICAL DETAILS

  • 5V@ 4A rated current (peak 4.5A)
  • 12V@ 1A rated current (peak 1.5A)
  • -12V @ 1A rated current (peak 1.5A)
  • Power input cable (100VAC to 240VAC) costumizable..ask me ( EU connector /Shuko /USA)
  • Fully fused and electrically protected
  • Robust and sturdy chassis with power switch
  • Stabilized output voltage Over-voltage and over-current protection Fused on AC and DC side and fully isolated
  • Power output cable with DIN7 female connector!
  • Compact ABS enclosure + power button .Only 400gr weight

Please remember that original ATARI PSU has this value --> 5V@ 3A / +12V @0.03A / -12V 0.03A
>> So it means that you are buying really POWERFUL PSU REPLACEMENT! <<
