CWVK X86-P2 Fanless Firewall Mini PC J4125 16GB RAM Dual Intel i226-V 2.5GbE:
$184.99

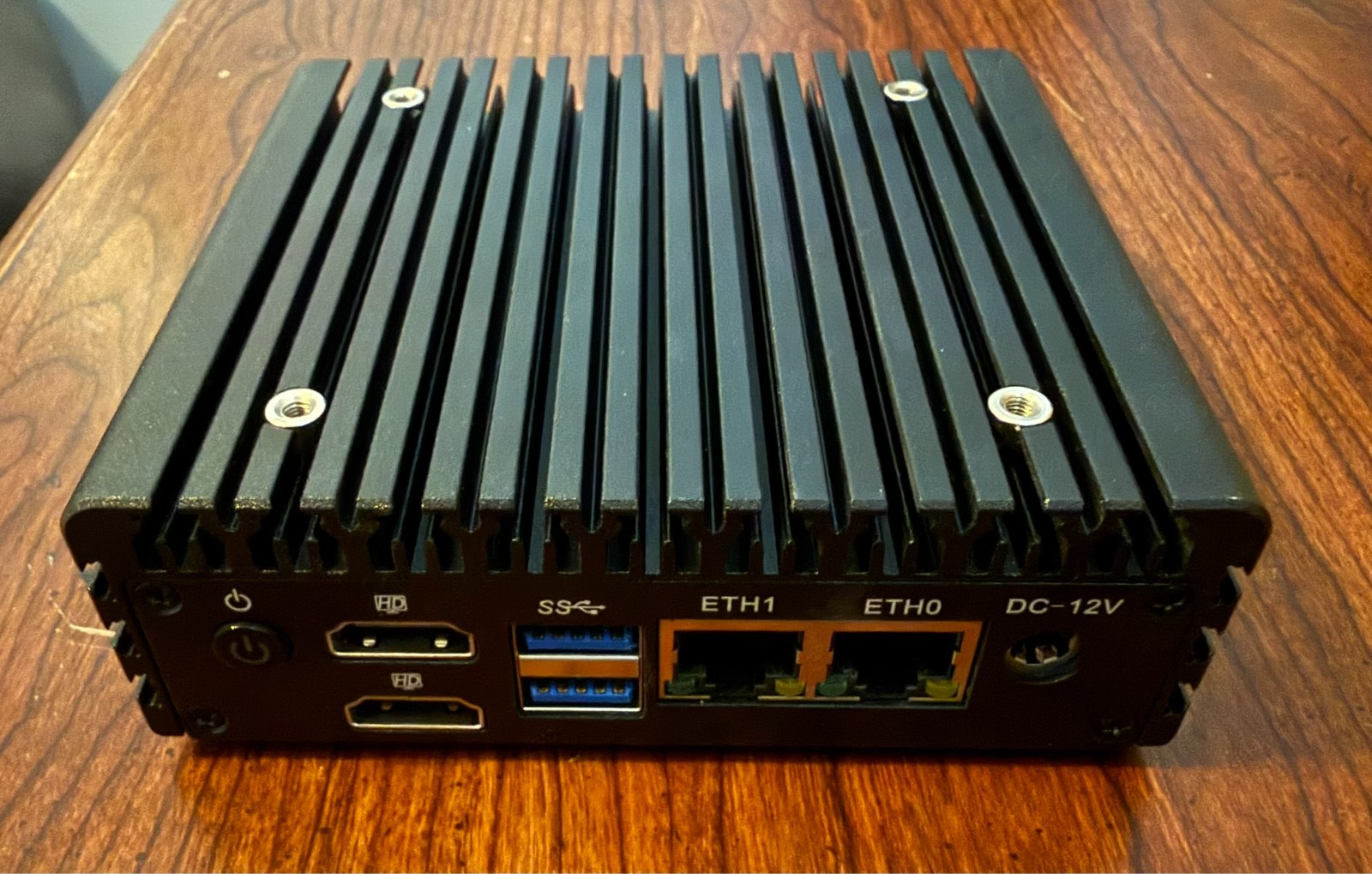

CWVK X86-P2 Fanless Firewall Mini PC – Intel J4125 / 16GB RAM / Dual 2.5GbE

Tested, fully functional CWVK X86-P2 fanless firewall appliance with 16GB DDR4 RAM and dual Intel i226-V 2.5GbE network interfaces.

Thoroughly tested: MemTest86 v11.7 completed all 48 tests over 5 hours and 54 minutes with zero errors. CPU and installed 16GB Silicon Power RAM verified using CPU-Z and HWiNFO64.

This unit was previously used as a dedicated home network firewall and is being sold following a hardware upgrade.

Specifications

  • Intel Celeron J4125 quad-core processor (4 cores, 4 threads, 2.0 GHz, up to 2.7 GHz burst)

  • 16GB DDR4 SO-DIMM RAM installed

  • 2 × Intel i226-V 2.5 Gigabit Ethernet ports

  • M.2 NVMe storage support (2242/2280)

  • 2 × USB 3.0 ports

  • 2 × HDMI 1.4 display output (Intel UHD Graphics 600)

  • Intel VT-x / VT-d virtualization support

  • Fanless aluminum chassis – silent passive cooling

  • Includes external AC power adapter

  • On board I/O: the motherboard provides one 2X 7pin TPM pin (compatible with ASUS TPM module), one 4pin (CPU-FAN) cooling fan interface (foot pitch: 1.25 mm), one two × 20pin J1 pin interface (pitch: 2.0mm) 1 COM pin BIOS: AMI BIOS supports network boot (PXE), network wake-up (WOL), watchdog programming, GPIO

  • Main board size: 90mm X 90mm

Condition and Testing

The system is pre-owned, fully functional, and has been used in a home environment.

  • Hardware verified using CPU-Z and HWiNFO

  • Memory diagnostic testing performed using MemTest86, zero errors

  • Previously operated as a dedicated firewall and also as a Proxmox server

  • Actual photos of the hardware and diagnostic results are included

Great For

  • OPNsense or pfSense firewall/router

  • Home lab and virtualization experiments (e.g. Proxmox Virtual home networking

  • VPN gateway

  • Network segmentation and VLANs

  • Linux-based networking applications

The dual Intel 2.5GbE network controllers make this a particularly useful platform for dedicated firewall and routing applications.

Included

  • CWVK X86-P2 mini PC

  • Installed 16GB DDR4 RAM

  • External AC power adapter

Storage: No SSD included.

Operating system: No operating system included. Buyer will need to provide storage and install/configure their preferred operating system.

Ships securely packaged from North Carolina, USA.

Software setup and ongoing technical support are not included.
