Cisco QSFP-40/100-SRBD 100G 40GBase BiDi 100m LC Transceiver Module W/ Hologram For Sale

Cisco QSFP-40/100-SRBD 100G 40GBase BiDi 100m LC Transceiver Module W/ Hologram
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Cisco QSFP-40/100-SRBD 100G 40GBase BiDi 100m LC Transceiver Module W/ Hologram:
$125.00

Cisco New QSFP-40/100-SRBD 100G 40GBase offeri 100m LC Transceiver Module W/ Hologram

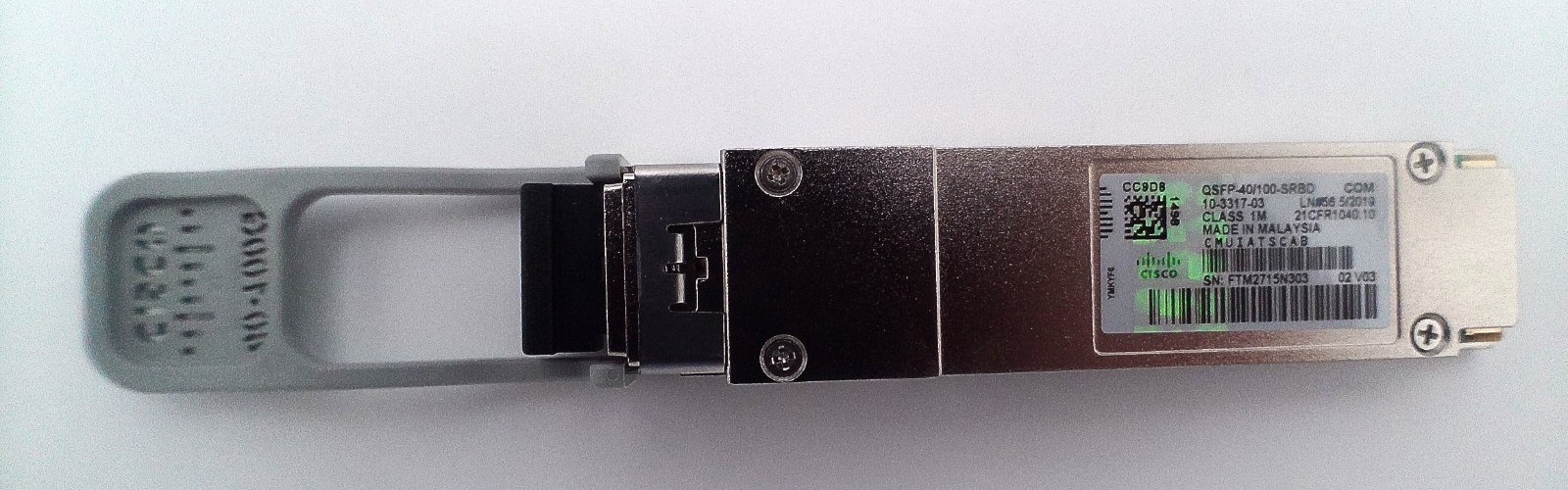

The Cisco QSFP-40/100-SRBD is a dual-rate bi-directional (offeri) pluggable optical transceiver that enables migration to 40 GbE or 100 GbE over existing 10G duplex multi-mode fiber (MMF) infrastructureTechnical Specifications
  • Form Factor: QSFP28 / QSFP100
  • Media Type: Multi-Mode Fiber (MMF) using a duplex LC connector
  • Operating Modes & Reach:
    • 40-Gbps Mode: Up to 100 meters on OM3 MMF; up to 150 meters on OM4 MMF.
    • 100-Gbps Mode: Up to 70 meters on OM3 MMF; up to 100 meters on OM4 MMF (and up to 150 meters on OM5).
  • Wavelength Range: 832 nm to 918 nm (dual-wavelength VCSEL offeri, typically utilizing ~850 nm / 900 nm or 855 nm / 908 nm bands).
  • Optical Modulation: PAM4 (2 x 50 Gbps for 100G mode)
  • Power Consumption: Maximum 3.5W to 4W
  • Operating Temperature Range: Commercial standard 0°C to 70°C (32°F to 158°F)
  • Digital Diagnostics Monitoring (DOM/DDM): Supported

****Descriptions may include manufacturer's original specs and serve only as a guideline - Please contact us for additional questions****
