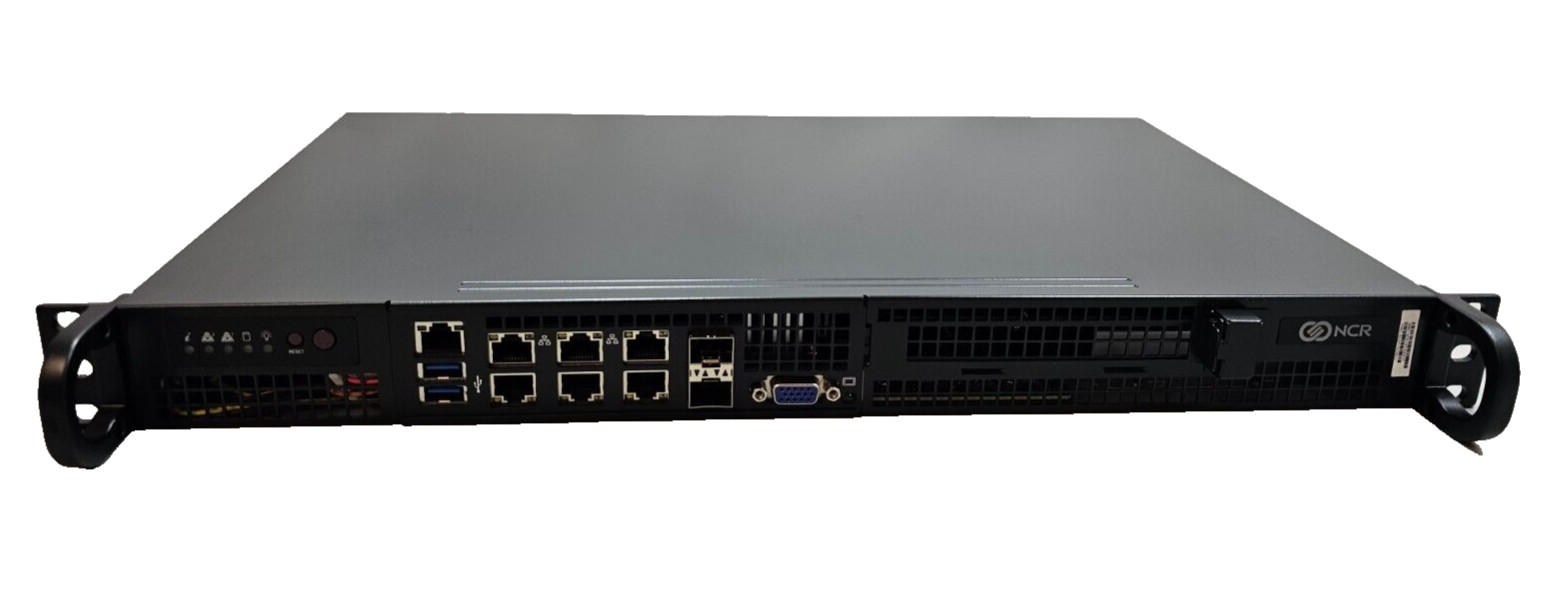

New Barebones Supermicro 5019D Server, 4C/8T Xeon D-2123T, 1U Rackmountable, 10G For Sale

New Barebones Supermicro 5019D Server, 4C/8T Xeon D-2123T, 1U Rackmountable, 10G
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

New Barebones Supermicro 5019D Server, 4C/8T Xeon D-2123T, 1U Rackmountable, 10G:
$449.99

Open box unit, never been installed. System was removed from sealed packaging and had SSD's & Memory pulled.
Factory configured SSD's and RAM has been pulled by us to offer a more competitive price, allowing you to build exactly to your specs! BIOS pic shows ram, this was only for photos, there is no ram included!
Key Features• Network Security Appliance • SD-WAN, vCPE controller box • NFV Edge Computing Server • Virtualization Server • IoT Edge Computing Key Features 1. Intel® Xeon® processor D-2123IT, 4-Core, 8 Threads, 60W 2. 1 Internal 3.5" or 4 Internal 2.5" drive bays 3. 1 M.2 slot M key for SSD, 2242/80, 1 M.2 B Key for SSD/ WAN card, 1 Mini PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot 4. Up to 512GB ECC LRDIMM, up to 256GB ECC DIMM DDR4-2666Mz; in 4 DIMM slots 5. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0 6. 1 VGA, 2 USB 3.0 7. 3x 40x28mm 4-PIN PWM fans 8. 200W Low-noise AC-DC power supply
Product SKUs SYS-5019D-4C-FN8TP SuperServer 5019D-4C-FN8TP (Black) Motherboard Super X11SDV-4C-TP8F Processor CPU Intel® Xeon® processor D-2123IT, CPU TDP support 60W Cores / Cache 4 Cores, 8 Threads System Memory Included Memory No memory Included Memory Capacity Up to 512GB DDR4 ECC LRDIMM Up to 256GB DDR4 ECC DIMM 4 DIMM slots Memory Type 2933/2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC DIMM DIMM Sizes 128GB, 64GB, 32GB, 16GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Included Drives No drives included SATA SATA3 (6Gbps) ports via SoC controller Network Controllers Dual 10G SFP+ via SoC Quad 1GbE with Intel I350-AM4 Dual 10GBase-T with Intel X557 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics Aspeed AST2500 BMC Input / Output SATA 4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD) LAN 2 10G SFP+ ports 4 RJ45 1GbE LAN ports 2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port USB 2 USB 3.0 ports (rear) VGA 1 VGA port Others TPM 2.0 header Chassis Form Factor 1U Rackmount Model CSE-505-203B Dimensions and Weight Height 1.7" (43mm) / 6.1" (155mm) - pkg. Width 17.2" (437mm) / 25.8" (655mm) - pkg. Depth 9.8" (249mm) / 18.3" (465mm) - pkg. Weight Net Weight: 8 lbs (3.63 kg) Gross Weight: 12 lbs (5.44 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED Network activity LEDs System Information LED Information LED (temp., status) Expansion Slots PCI-E 1 PCI-E 3.0 x8 slot 1 Mini-PCI-E with mSATA Support M.2 1 M.2 slot M key for SSD, 2242/80 1 M.2 B Key for SSD/ WAN card Drive Bays Internal 1 Internal 3.5" or 4 Internal 2.5" drive bays System Cooling Fans 3x 40x28mm 4-PIN PWM fans Power Supply 200W Low Noise AC-DC power supply with PFC AC Voltage 100 - 240V, 50-60Hz, 2.6 Amp Max +5V 8.0 Amp (max.) +5V standby 2.0 Amp (max.) +12V 16 Amp (max.) -12V 0.5 Amp (max.) +3.3V 8.0 Amp (max.) Certification Gold Certified System BIOS BIOS Type 128Mb SPI Flash with AMI BIOS BIOS Features PCI 3.0 ACPI 5.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup Operating Environment / Compliance RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) therboard / Chassis MBD-X11SDV-4C-TP8F 1 Super X11SDV-4C-TP8F Motherboard CSE-505-203B 1 1U Chassis Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG Cable 2 CBL-SAST-0538 2 SATA,INT,ROUND,ST-RA,29CM,30AWG FAN 1 FAN-0065L4 3 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M Drive Tray(s) MCP-220-00051-0N 2 Single 2.5 Rear Window MCP-240-00091-0N 2 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF Parts MCP-260-00100-0B 1 1U I/O Shield Fan Holder MCP-320-81302-0B 3 Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) Riser Card RSC-RR1U-E8 1 RSC-RR1U-E8 Power Supply PWS-203-1H 1 1U 200W Multi-output 80Plus Gold PWS Air Shroud MCP-310-50503-0B 1 Mylar air shroud for SC504/505 with X11SDV-16C-TP,RoHS/REACH
Buy Now

Documentation
