Vintage IBM PS/1 Essential 2168 486DX2-50 16MB CD-ROM Mwave DOS 6.22 Win 3.11 For Sale

Vintage IBM PS/1 Essential 2168 486DX2-50 16MB CD-ROM Mwave DOS 6.22 Win 3.11
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Vintage IBM PS/1 Essential 2168 486DX2-50 16MB CD-ROM Mwave DOS 6.22 Win 3.11:
$269.98

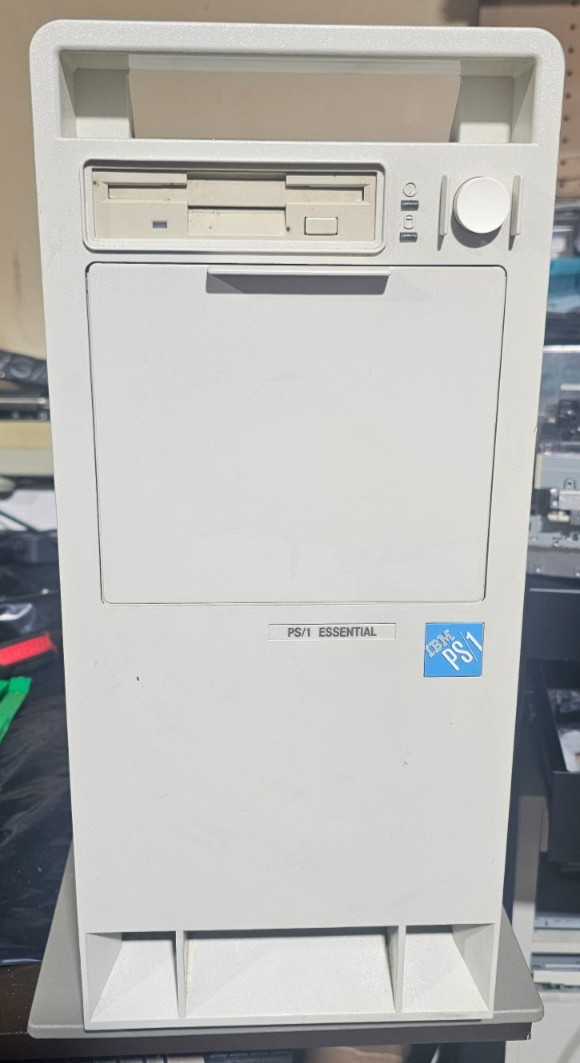

IBM PS/1 Essential Tower (Machine Type 2168): 486DX2-50 with Mwave, DOS 6.22 and Windows for Workgroups 3.11

A classic IBM PS/1 Essential tower, cleaned up, serviced, and ready to use. It boots into DOS 6.22 and Windows for Workgroups 3.11, sound is working in both DOS and Windows, and all three drives (5.25\" floppy, 3.5\" floppy, and CD-ROM) have been tested with real software. With seven open 16-bit ISA slots and two open memory slots, there\'s plenty of room to build on.

Specifications

  • Model: IBM PS/1 Essential, Machine Type 2168, Model 31E
  • CPU: Intel 486DX2-50 (2× 25 MHz), internal math coprocessor
  • Memory: 16 MB (2 of 4 SIMM slots used, 2 open)
  • Video: Onboard Cirrus Logic CL-GD5428 (VESA Local Bus), 512 KB video memory
  • Display Setting: 640×480 in 256 colors under Windows (the maximum for 512 KB of video memory)
  • Sound/Modem: IBM Mwave sound card/modem
  • Hard Drive: Maxtor 71336AP, 1.2 GB (replacement, see below)
  • Floppy Drives: 3.5\" 1.44 MB and 5.25\" 1.2 MB
  • Optical Drive: CD-ROM drive
  • Operating System: MS-DOS 6.22 and Windows for Workgroups 3.11
  • Expansion: 8 × 16-bit ISA slots, 1 used by the Mwave card, 7 open (3 above and 4 below the Mwave card)

Rear Ports

  • PS/2 keyboard and PS/2 mouse
  • Two DB9 serial ports
  • DB25 parallel port
  • VGA (onboard video)
  • Mwave card: game/MIDI port, audio jacks, and phone line jack

Service and Repairs

  • Power supply replaced: The original power supply failed and has been replaced.
  • Hard drive replaced: The original hard drive failed and has been replaced with the Maxtor 1.2 GB drive.
  • Floppy drives: Heads cleaned on both drives.
  • CD-ROM drive: Opened, cleaned, and lubricated. This drive uses a gear-driven tray rather than a belt, so there is no rubber belt to degrade.

Software Installed

  • MS-DOS 6.22
  • Windows for Workgroups 3.11
  • Cirrus Logic video drivers, set to 640×480 in 256 colors
  • Mwave sound card/modem drivers
  • Duke Nukem 3D
  • ASTRA system information utility

Testing

  • Powers on and boots into DOS 6.22 and Windows for Workgroups 3.11
  • Sound: Mwave card tested and working in both DOS and Windows
  • 3.5\" floppy drive: Tested by installing DOS, Windows, and the video drivers from floppy
  • 5.25\" floppy drive: Tested by running King\'s Quest III (not pictured)
  • CD-ROM drive: Tested by installing Duke Nukem 3D and the sound card drivers from CD
  • Modem: Untested
  • System detected with ASTRA (see screenshots)

Cosmetic Condition
Good overall for a 30+ year old machine. Please review all photos. Known issues:

  • Several rear expansion slot covers are missing
  • Rust spots on the rear panel and on the power supply fan grille
  • Adhesive residue on the blank drive bay cover on the front
  • Light specks and marks on the CD-ROM drive bezel
  • Dust and light marks on the interior floor of the case

What\'s Included

  • IBM PS/1 Essential tower
  • Power cord
  • Mwave sound card driver CD
  • Video driver floppy disks (Disk 1 and Disk 2)

Not Included

  • Monitor (shown for demonstration purposes only)
  • Keyboard and mouse
  • Original software installation media

Shipping
I ship on Fridays and Saturdays, with additional drop-offs on Mondays for orders packed in advance. Please allow a few days for handling.

Returns and Warranty
This item was tested and working at the time of listing. It is sold as-is with no warranty, express or implied. No returns, refunds, or exchanges.
