Vintage Intel SDK-86 8086 Microprocessor System Design Kit Evaluation Board⁠:
$599.00

Item Specifics
* Brand: Intel
* Model: SDK-86 (System Design Kit)
* Part Number: 1001940-REV
* Processor: Intel 8086 (16-Bit Microprocessor)
* Type: Microcomputer Evaluation / Single Board Computer / Development Kit

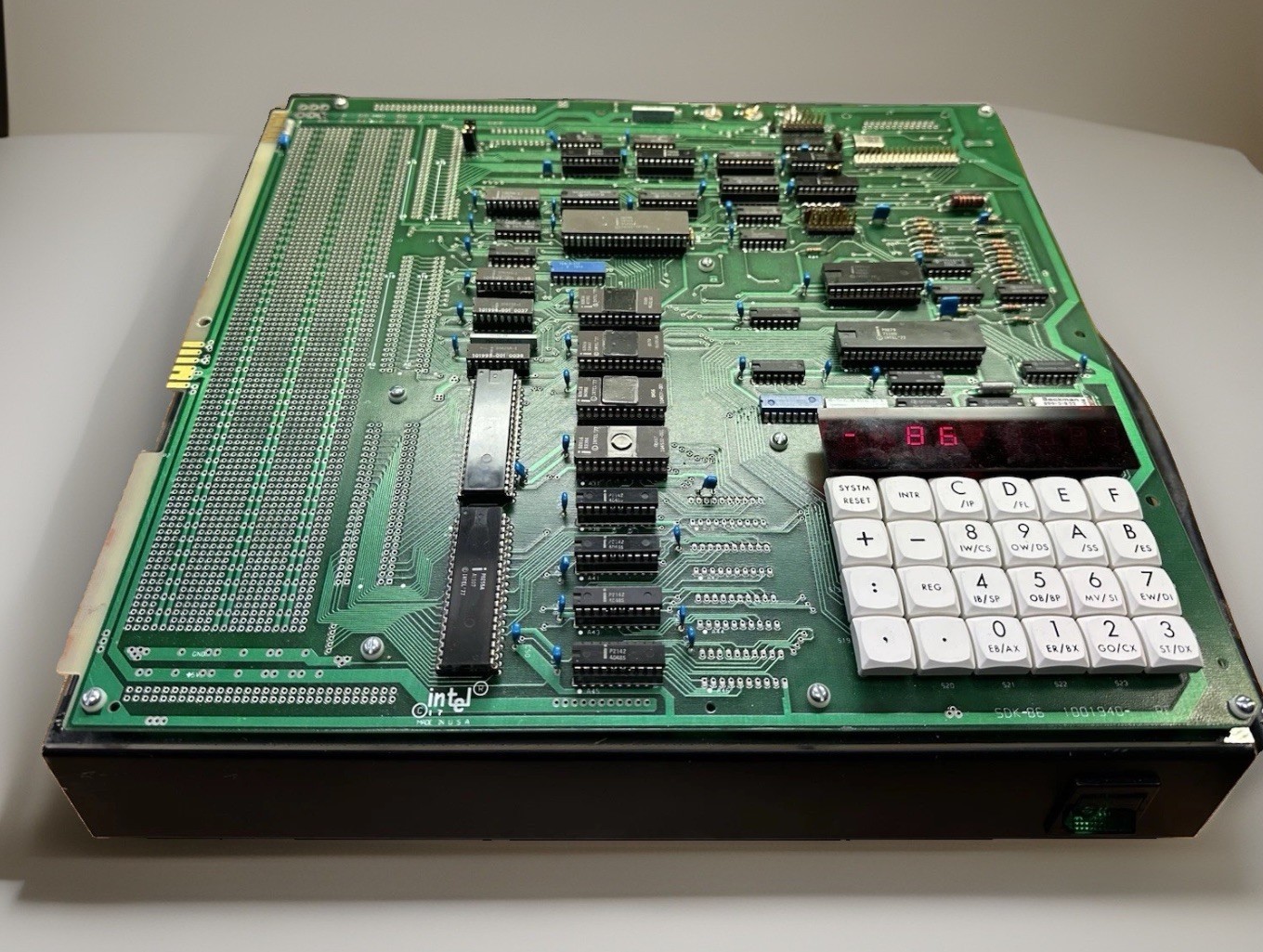

* Features: Built-in Hexadecimal Keypad, 8-Digit LED Display, Custom Enclosure/Power SupplyUp for sale is a rare vintage Intel SDK-86 System Design Kit single-board computer, built around the iconic Intel 8086 16-bit microprocessor. This unit comes mounted on a custom sloped metal desktop enclosure with an integrated power supply, power switch, fuse holder, and power cord. Includes an extra IC chip tube as shown in the photos.Condition & Testing:
Power Test: Tested and powers on—the 8-digit red LED display illuminates clearly.
Physical Condition: Excellent cosmetic condition for its age. All keys on the keypad are intact. Board traces, IC sockets, and components are clean with no obvious corrosion or burn marks.
Notes: Sold as-is due to vintage electronics nature, but visually clean and powers up as expected.
Features:
Onboard Intel 8086 CPU
Onboard keypad for direct machine code / assembly entry
8-digit 7-segment LED display
Large breadboard / prototyping area
Revision 1001940 board marking
Included in Sale:
Intel SDK-86 Board mounted in custom chassis
Integrated AC Power Cord
Extra IC Chip Tube (DP8228N System Controller & Bus Driver)
