Vtg IBM Mainframe Prototype Chip Module Lot 146 pc 1988-1993 ES/9000 Lab Arcive:
$649.00

"This collection features an immense amount of visible, heavy vintage gold plating across the heavy-duty diagnostic header pins and internal open-face microcircuit frames. While highly valuable as heavy e-waste gold scrap material, this archive is being sold intact as a historic museum-grade R&D lot, as its collector and historical value vastly exceeds its melt value."


Item Specifics


  • Brand: IBM (International Business Machines)

  • Type: Vintage Mainframe Engineering Samples / Prototype Test Vehicles

  • Era: Late 1980s to Early 1990s (Dated 1988–1993) [righto.com]

  • Total Quantity: 146 Pieces (Assorted modules, dies, wafer shards, and diagnostic adapters)

  • Condition: For parts or not working / Vintage R&D Artifacts

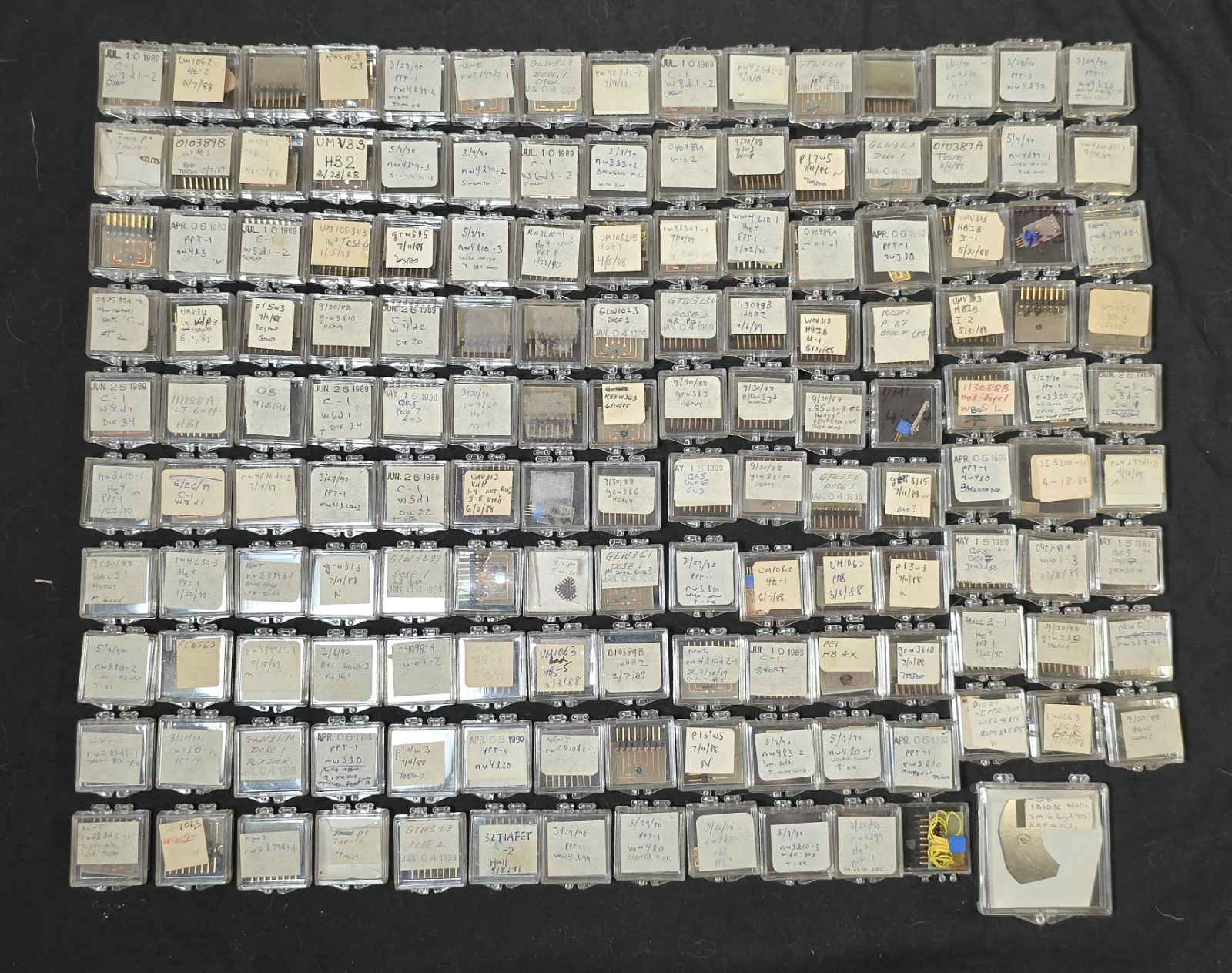

Up for sale is an extraordinary, massive archive of 146 authentic IBM engineering prototype modules, silicon specimens, and custom test vehicles, dating from 1988 to 1993 [righto.com].


This collection represents a vital piece of computing history from the peak of IBM's high-performance mainframe development era (covering the IBM System/390 and ES/9000 architectures) [righto.com]. These are not standard, mass-produced assembly-line parts. Instead, they are direct R&D artifacts sourced from an active engineering and failure analysis lab environment, preserved for decades inside a vintage industrial storage box.


🔬 Technical Highlights & Component Diversity:


  • Product Production Trials (PPT-1): Multiple ceramic substrate diagnostic carriers explicitly marked for pre-production validation trials.

  • Custom "Bodge-Wire" Mod Cards: Fascinating prototyping specimens showcasing hand-soldered yellow jumper wire loops and discrete micro-components added under lab microscopes to adjust circuitry on the fly.

  • Failure Analysis Silicon Wafer Shards: Incredible display pieces featuring a raw, polished monolithic silicon wafer fragment. This shard includes an etched integrated test site (marked with alignment numbers "10" and "0") surrounded by heavy microscopic diagnostic needle scratch marks where engineers probed the circuits.

  • Exposed Silicon Test Dies: Numerous open-face, uncapped gold-and-silver ceramic tiles showing exposed microprobe contact points and raw silicon dies surrounded by radiating gold leadframes.

  • Precision Tuning Adapters: Custom diagnostic coupons featuring hand-soldered matrix paths mated to manual blue potentiometer precision trim blocks used to manually adjust signals on test benches.

  • Documented Lab Status Verdicts: Historically significant handwritten labels mapping the entire design lifecycle, featuring official verdicts such as "P GOOD" (Power Passed), "SHORT", "OPEN", "TIME OK", and "BAD".

  • Advanced Logic Evolutionary Path: Pieces tracking the engineering progression of IBM's high-efficiency logic families, featuring labels for "QRS" (Qualification Run Series), "He³", and "HE 4" architectures, "Quick-Turnaround" (QT) gate arrays, and specialized cleanroom process evaluations (such as a "3 min P+" heavily-doped p-type layer test sample).

📝 Labeling & Provenance


Nearly every plastic protective case features invaluable handwritten or typed internal engineering tracking data, including explicit dates (ranging from early 1988 through late 1993), wafer run identifiers (e.g., Wafer Lot C-1, Die 22, Die 34), gate array designations, and engineering lab notebook page references (e.g., "Book of 654").


⚠️ Condition & Preservation Note


All modules are being sold strictly As-Is for historical collection, display, and museum purposes. Due to their age, the original grey protective foam inserts inside the plastic cases are naturally degrading and crumbling. The items will be shipped exactly as shown. Buyers are advised to handle them with extreme care to avoid bending the delicate gold-plated terminal interface pins or disturbing the fragile internal wiring.


📦 Shipping & Handling


This historic lot will be packed with professional-grade cushioning. Each row of plastic cases will be thoroughly isolated and bubble-wrapped to prevent shifting or crushing during transit. Secure, tracked shipping with full insurance is mandatory to protect this one-of-a-kind tech archiv
